Description
Product Overview

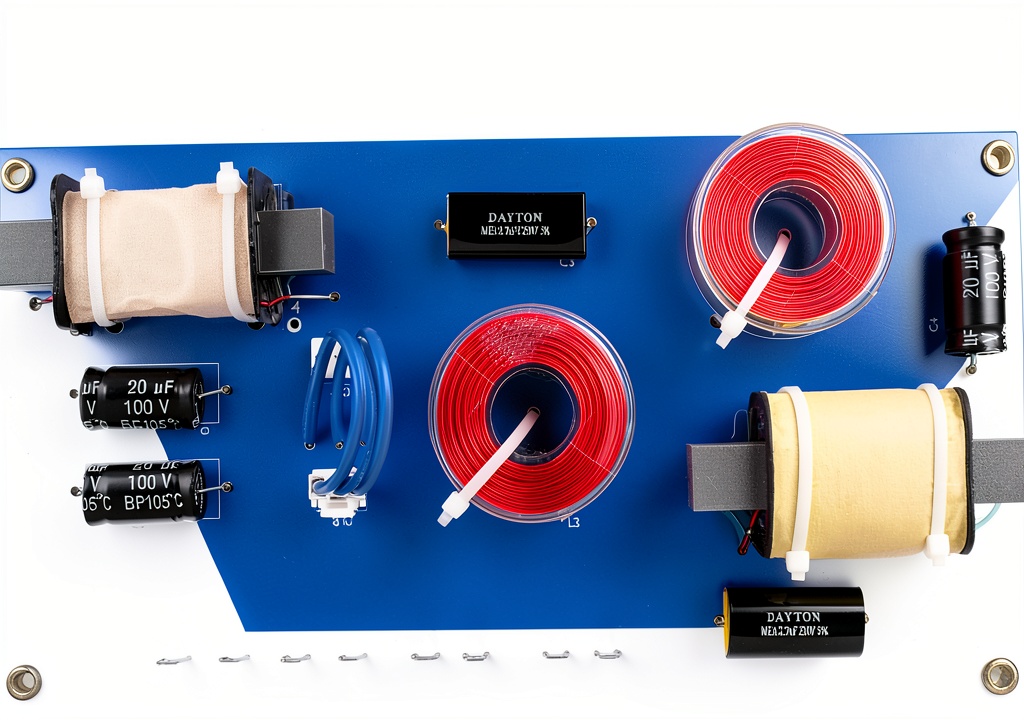

The Dayton Audio XO3W-500-4K-S is a high‑performance audio crossover designed for precision and flexibility. Engineered with a three‑octave spread between crossover points, it provides a seamless blend of low, mid, and high frequencies, eliminating harsh gaps and ensuring a natural listening experience. Critical signal paths for the midrange and tweeter employ metallized polyester film capacitors, renowned for low ESR and stable performance over time. The low‑pass section is adaptable, supporting both 4 Ω and 8 Ω woofers, which makes the unit suitable for a wide range of speaker configurations, from compact bookshelf designs to larger floor‑standing systems. Built to the rigorous standards of Dayton Audio, the XO3W-500-4K-S combines robust construction with compact dimensions (10.24 x 4.72 x 1.97 inches) and a modest weight of 2.2 lb, facilitating easy installation in tight enclosures.
Usage
Designed for both DIY hobbyists and professional audio installers, this crossover excels in home theater setups, high‑fidelity music rooms, and custom speaker projects. Its flexible low‑pass design allows seamless integration with existing woofers, whether you are upgrading a vintage cabinet or building a new system from scratch. The unit’s reliable components make it ideal for continuous use in demanding environments, such as live‑sound reinforcement or commercial installations where consistent performance is critical.
Why Choose Us
Dayton Audio has a reputation for delivering audio components that balance affordability with professional‑grade quality. The XO3W-500-4K-S benefits from meticulous quality control, ensuring each capacitor and inductor meets exacting tolerances. Our manufacturing process includes thorough testing for frequency response, phase alignment, and power handling, guaranteeing that the crossover performs as specified out of the box. Additionally, the product is backed by a responsive customer support team and a clear warranty, providing peace of mind for both seasoned builders and newcomers to speaker design.
Key Features
- Three‑octave spread for smooth frequency transition and balanced sound
- Metallized polyester film capacitors in midrange and tweeter paths for low distortion
- Low‑pass section compatible with 4 Ω or 8 Ω woofers, offering design flexibility
- Compact footprint (10.24 x 4.72 x 1.97 in) and lightweight (2.2 lb) for easy mounting
- Highly rated by users (4.8/5 stars from 11 reviews) and ranked #145 in Audio & Video Crossover Parts
FAQ
What type of capacitors are used in this crossover?
The XO3W-500-4K-S utilizes metallized polyester film capacitors in the critical midrange and tweeter signal paths, chosen for their stability, low ESR, and long‑term reliability.
Can I use this crossover with an 8 Ω woofer?
Yes, the low‑pass section is designed to work with both 4 Ω and 8 Ω woofers, giving you flexibility when matching the crossover to your speaker drivers.
Is this crossover suitable for high‑power applications?
The unit is rated for typical home‑theater and hi‑fi power levels. For extreme high‑power scenarios, verify that your drivers and enclosure can handle the intended wattage.
How do I install the crossover in my speaker cabinet?
Mount the crossover using the provided mounting holes, connect the driver wires to the appropriate terminals (low‑pass to woofer, high‑pass to tweeter, and band‑pass to midrange if used), and secure all connections with solder or high‑quality crimp connectors. Ensure proper polarity to maintain phase alignment.
What warranty does Dayton Audio provide?
Dayton Audio offers a limited warranty that covers manufacturing defects. For detailed terms, refer to the warranty card included with the product or visit the official Dayton Audio website.
